Band Data Cable Info


NOTE! Band Data Cables and all other type interface cables are available from KC5PCB.
Contact Dan at kc5pcb2@att.net for ordering.
Dan's Biography: I have been making and assembling interface cables for 8 yrs now. Started with SPE but the last few years have started making interface cables for ACOM, Elecraft, FlexRadio PGXL & TGXL, Palstar, Ameritron, Yaesu and Tokyo Hy-Power. Been an Electronics Technician for over 40 yrs. In 2016 I retired after 21 years with the Houston Police Dept as a Sr. Communications Technician. Been licensed as KC5PCB since May 1995, General Class.

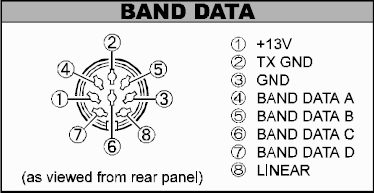

Yaesu FT747GX, FT757GX, FT920, FT990, FT1000, & FT2000 Transceiver Pinouts

Download File 8-Pin DIN Connector Pinouts

Download File 8-Pin DIN Connector Datasheet

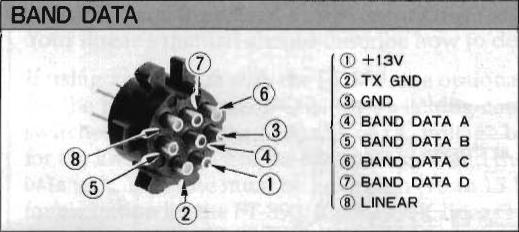

Yaesu FT840, 890, 897D, & 900 Transceiver Pinouts

Download File 8-Pin Mini-DIN Connector Pinouts

Download File 8-Pin Mini-DIN Connector Datasheet

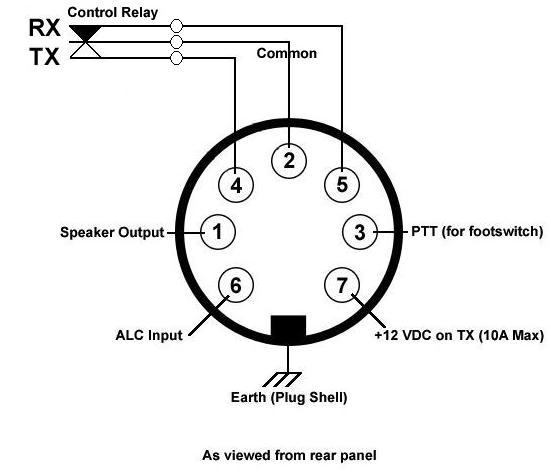

Kenwood TS450 thru TS950SDX Transceiver Pinouts

Download File Kenwood TS450-TS950SDX DIN Pinouts

FL-7000 Rear Molex Connector

Download File 9-Pin Molex Connector Datasheet

Download File Molex .062" Pin Datasheet

Yaesu FT747GX, FT757GX, FT920, FT990, FT1000, & FT2000 Band Data Cable Schematic
Yaesu (P/N D4000019)

Download File D4000019_Schematic

FT-840, 890, 897D, & 900 Series Band Data Cable Schematic
Yaesu CT-11 (P/N A0500001)

Download File A0500001 Schematic

Kenwood TS450S thru TS950SDX PTT & ALC Cable Schematic

Download File Kenwood TS450S-TS950SDX ALC & PTT Cable
